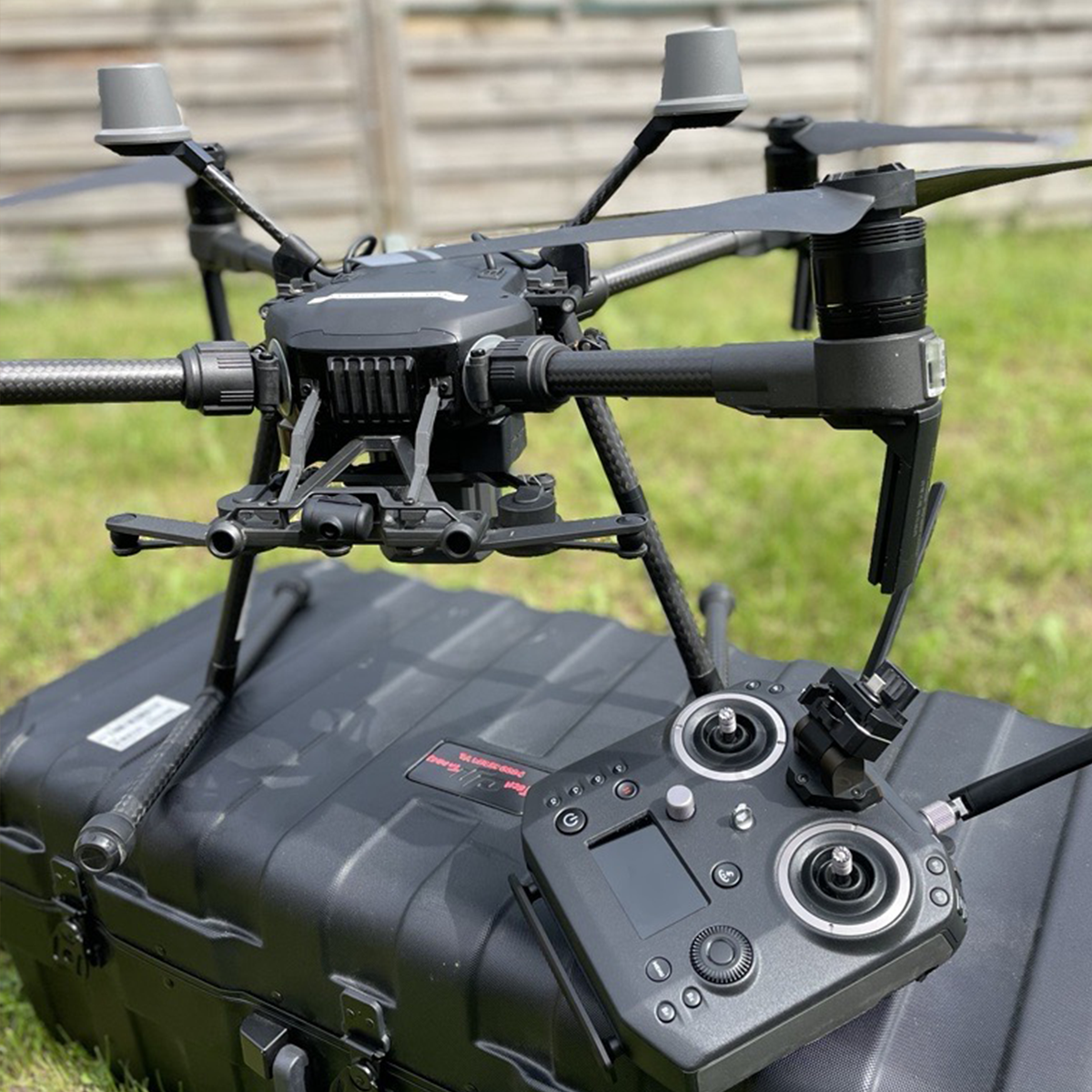

DJI Matrice 210 RTK (Occasion)

M210 V2 / M210 RTK V2

Aircraft

• Dimensions
• M210 V2:
• Unfolded, propellers and landing gears included, 883×886×398 mm
• Folded, propellers and landing gears excluded, 722×282×242 mm
• M210 RTK V2:
• Unfolded, propellers and landing gears included, 883×886×427 mm
• Folded, propellers and landing gears excluded, 722×282×242 mm
• Diagonal Wheelbase
• 643 mm
• Weight
• M210 V2: Approx. 4.8 kg (with two TB55 batteries);
• M210 RTK V2: Approx. 4.91 kg (with two TB55 batteries)
• Max Takeoff Weight
• 14 kg
• Max Payload
• M210 V2: 1.34 kg; M210 RTK V2: 1.23 kg
• Operating Frequency
• 4000-2.4835 GHz; 5.725-5.850 GHz
• EIRP
• 4 GHz: ≤ 26 dBm (NCC/FCC); ≤ 20 dBm (CE/MIC); ≤ 20 dBm (SRRC)
• 8 GHz: ≤ 26 dBm (NCC/FCC); ≤ 14 dBm (CE); ≤ 26 dBm (SRRC)
• Hovering Accuracy (P-mode with GPS)
• Vertical: ±1.64 feet (±0.5 m) or ±0.33 feet (±0.1 m, Downward Vision System enabled)
• Horizontal: ±4.92 feet (±1.5 m) or ±0.98 feet (±0.3 m, Downward Vision System enabled)
• Hovering Accuracy (D-RTK, M210 RTK V2)
• Vertical: ±0.33 feet (±0.1 m); Horizontal: ±0.33 feet (±0.1 m)
• Max Angular Velocity
• Pitch: 300°/s, Yaw: 120°/s
• Max Pitch Angle (Dual Downward Gimbal/Single Upward Gimbal)
• S-mode: 30°; P-mode: 30° (Forward Vision System enabled: 25°); A-mode: 30°
• Max Pitch Angle [Single Downward Gimbal (Gimbal Connector I)]
• S-mode: 35°; P-mode: 30° (Forward Vision System enabled: 25°); A-mode: 30°
• Max Ascent Speed
• 4 ft/s (5 m/s)
• Max Descent Speed (vertical)
• 8 ft/s (3 m/s)
• Max Speed (Dual Downward Gimbal/Single Upward Gimbal)
• S-mode/A-mode: 73.8 kph (45.9 mph); P-mode: 61.2 kph (38 mph)
• Max Speed [ Single Downward Gimbal (Gimbal ConnectorI) ]
• S-mode/A-mode: 81 kph (50.3 mph); P-mode: 61.2 kph (38 mph)
• Max Service Ceiling Above Sea Level
• 9842 feet (3000 m, with 1760S propellers)
• Max Wind Resistance
• 4 ft/s (12 m/s)
• Max Flight Time (with two TB55 batteries)
• M210 V2: 34 min (no payload), 24 min (takeoff weight: 6.14 kg)
• M210 RTK V2: 33 min (no payload), 24 min (takeoff weight: 6.14 kg)
• Supported DJI Gimbals
• Zenmuse X4S/X5S/X7/XT/XT2/Z30
• Supported Gimbal Configurations
• Single Downward Gimbal, Dual Downward Gimbals, Single Upward Gimbal
• Ingress Protection Rating
• IP43
• GNSS
• M210 V2: GPS+GLONASS;
• M210 RTK V2: GPS+GLONASS+BeiDou+Galileo
• Operating Temperature
• -4° to 122° F (-20° to 50° C)

Remote Controller (GL900A)

• Operating Frequency
• 4000-2.4835 GHz; 5.725-5.850 GHz
• Max Transmitting Distance(unobstructed, free of interference)
• NCC/FCC: 5 mi (8 km); CE/MIC: 3.1 mi (5 km); SRRC: 3.1 mi (5 km)
• EIRP
• 4 GHz: ≤ 26 dBm (NCC/FCC); ≤ 20 dBm (CE/MIC); ≤ 20 dBm (SRRC)
• 8 GHz: ≤ 26 dBm (NCC/FCC); ≤ 14 dBm (CE); ≤ 26 dBm (SRRC)
• Power Supply
• Extended Intelligent Battery (Model: WB37-4920mAh-7.6V)
• Output Power (max)
• 13 W (Without supplying power to monitor)
• USB Power Supply
• 1 A⎓2 V (max)
• CrystalSky Monitor
• DJI CrystalSky 7.85inch, Resolution: 2048×1536;
• Brightness: 2000 cd/m2; Operating System: Android 5.1; Storage: ROM 128GB
• Operating Temperature
• -4° to 122° F (-20° to 50° C)

Downward Vision System

• Velocity Range
• <32.8 ft/s (10 m/s) at the height of 6.56 feet (2 m)
• Altitude Range
• <32.8 feet (10 m)
• Operating Range
• <32.8 feet (10 m)
• Operating Environment
• Surfaces with clear patterns and adequate lighting (>15 lux)
• Ultrasonic Sensor Operating Range
• 33-16.4 feet (0.1-5 m)
• Ultrasonic Sensor Operating Environment
• Non-absorbing material, rigid surfaces (thick indoor carpeting will adversely affect performance)

Forward Vision System

• Obstacle Sensing Range
• 3-98.4 feet (0.7-30 m)
• FOV
• Horizontal: 60°; Vertical: 54°
• Operating Environment
• Surfaces with clear patterns and adequate lighting (> 15 lux)

Upward Infrared Sensing System

• Obstacle Sensing Range
• 0-16.4 feet (0-5 m)
• FOV
• ±5°
• Operating Environment
• Large, diffuse, and reflective obstacles (reflectivity >10%)

Intelligent Flight Battery (TB55-7660mAh-22.8V)

• Capacity
• 7660 mAh
• Voltage
• 8 V
• Battery Type
• LiPo 6S
• Energy
• 6 Wh
• Net Weight (Single One)
• 885 g
• Operating Temperature
• -4° to 122° F (-20° to 50° C)
• Charging Temperature
• 41° to 104° F (5° to 40° C)
• Max Charging Power
• 180 W

Charger (IN2C180)

• Voltage
• 1 V
• Rated Power
• 180 W

Charging Hub (IN2CH)

• Input Voltage
• 1 V
• Input Current
• 9 A
